COM Express embedded computing board for surveillance, security, and communications offered by Kontron

AUGSBURG, Germany – Kontron in Augsburg, Germany, is introducing the bCL6 Computer-on-Module in the COM Express basic Type 6 embedded computing board form factor for surveillance and security, communications, industrial control, medical imaging, digital signage, and professional gaming and entertainment.

May 29th, 2018
By Mil & Aero staff
By Mil & Aero staff

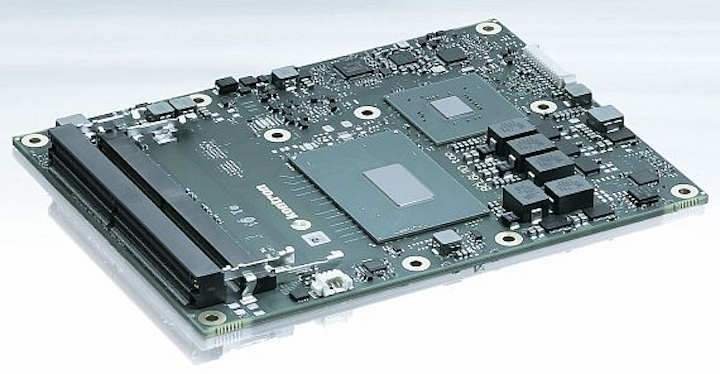

AUGSBURG, Germany – Kontron in Augsburg, Germany, is introducing the bCL6 Computer-on-Module in the COM Express basic Type 6 embedded computing board form factor for surveillance and security, communications, industrial control, medical imaging, digital signage, and professional gaming and entertainment.

It is based on processors of 8th Gen Intel Core/Xeon E microprocessor family with a mobile chipset (CM246/QM370 PCH). The COM Express-bCL6 offers industry-grade quality and flexible application scenarios. The module is available in different processor variants, including hexacore CPU versions.

The COM Express basic Type 6 form factor measures 125 by 95 millimeters. All variants are available with as much as 64 gigabytes non-ECC/ECC DDR4 storage, a third and fourth slot can be equipped on demand.

The Kontron COM Express module supports the fast Intel Optane systems acceleration for quick high-capacity mass storage data transfer, as well as fast storage technology NVMe SSD in a compact design. USB 3.1. support with as much as 10 gigabits per second and USB Type C support offer twice the bandwidth as compared to USB 3.0 for fast data transfer.

The COM Express-bCL6 also benefits from the graphics performance of the 8th generation Intel processors. Four 4K displays can be controlled, three of them separately. UHD streaming supports high-quality video applications.

Related: COM Express embedded computing module for use in harsh environments introduced by Kontron

The COM Express-bCL6 is suited as a high-performance successor for existing solutions. In its R E2S version, the COM Express-bCL6 meets the demands of the defense and transportation sectors by offering integrated rapid shutdown, ECC storage support, and deployment in industrial temperature ranges from -40 to 85 degrees Celsius.

Additionally, the COM Express-bCL6 supports the Kontron APPROTECT security solution. Based on an integrated Wibu-Systems security chip and in tandem with a specifically developed software framework, it provides IP and copy/reverse engineering protection.

Kontron APPROTECT Licensing also enables business models such as "pay per use", demo versions for limited time periods, or activation/deactivation functions.

The COM Express-bCL6 module is available in these processor variants: Intel Xeon E-2176M, 6x 2.7 GHz (4.4 GHz), GT2, 45 to 35 Watts; Intel Core i7-8850H, 6x 2.6 GHz (4.3 GHz), GT2, 45 to 35 Watts; and Intel Core i5-8400H, 4x 2.5 GHz (4.2 GHz), GT2, 45 to 35 Watts.

For more information contact Kontron online at www.kontron.com.
