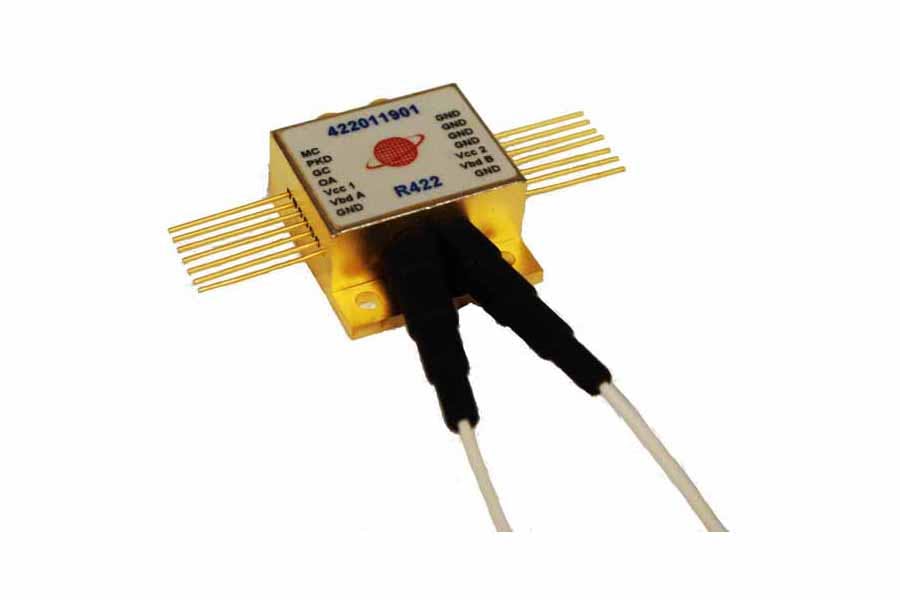

Fig. 1:DSC-R422 linear AGC balanced optical receiver
The DSC-R422 is a linear AGC balanced receiver ideally suited for a variety of analog and digital applications, such as coherent 100G / 200G / 400G systems. The R422 offers a variety of useradjustable characteristics such as RF gain, output amplitude, and mode of operation (AGC or manual gain control). The R422 offers 33 GHz bandwidth, gain up to 2800 V/W, low power dissipation and a peak detector function. The R422 is available in a GPPO module package as well as in Discovery’s Lab Buddy instrument. The Lab Buddy is offered with built-in firmware which allows it to be integrated with other pieces of equipment in automated test setups.
Courtesy of Discovery Semiconductors Inc
Fig. 1:DSC-R422 linear AGC balanced optical receiver
Courtesy of Discovery Semiconductors Inc
Fig. 2:DSC-R422 linear AGC balanced optical receiver lab buddy
Salient Features:
Balanced optical receiver to 33 GHz with well-matched fiber length, responsivity & RF response
Two modes of operation: automatic gain control (AGC) or manual gain control
User-adjustable differential gain: up to 2800 V/W
Operating wavelength from 1000 nm to 1650 nm
Peak detector function for monitoring of RF output amplitude
Low optical PDL (typically 0.05 dB)
Applications:
Digital coherent systems, including DP-QPSK and 16QAM, up to 56 Gbaud
Coherent PON
Analog and RF photonics applications to 33 GHz
Free space communications links
Available Models:
DSC-R422 – 33 GHz Linear AGC Balanced Optical Receiver
