Lidar, computer simulation blend in avionics to help helicopter pilots land safely in dust

OTTAWA – Helicopter avionics specialists at two Canadian aerospace companies are blending lidar technology and computer simulation to create a virtual environment for aircraft avionics to enable pilots to land safely in zero-visibility dust, smoke, and fog–especially at night.

Th Lidar 01

By John Keller

OTTAWA – Helicopter avionics specialists at two Canadian aerospace companies are blending lidar technology and computer simulation to create a virtual environment for aircraft avionics to enable pilots to land safely in zero-visibility dust, smoke, and fog–especially at night.

Lidar stands for light direction and ranging, and uses infrared laser beams as primary sensors for image capture of the surrounding area. This technology also is referred to as ladar, which is short for laser radar. Neptec’s military avionics technology is called OPAL, which is short for obscurant-penetrating autosynchronous lidar.

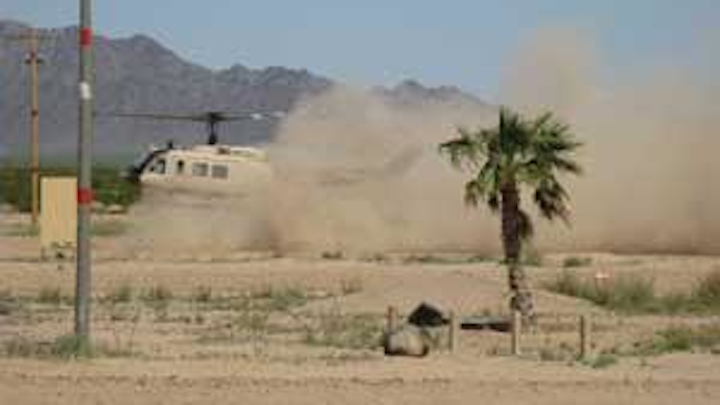

A U.S. Army UH-1 helicopter lands at Yuma Proving Ground, Ariz., to demonstrate how laser radar can penetrate zero-visibility conditions to help helicopter pilots land in dust.
Click here to enlarge image

Engineers at the Neptec Design Group in Ottawa and CAE in Montreal are using military laser technology to create imagery of visually obscured areas, which they overlay with terrain database information designed for military training and simulation to create an enhanced, computer-generated out-the-window view that is updated in real time to help helicopter pilots land where dust, smoke, fog, or other obscurants blot out the pilot’s view of the outside.

“Landing helicopters in brown-out conditions is the major application for this technology,” explains Neptec President Dr. Ian Christie. “This could help alleviate operational constraints where pilots can’t land in dusty areas at night. Lidar sees as well at night as it does during the day.”

CAE and Neptec demonstrated the OPAL sensor integrated into the CAE Augmented Visionics System (AVS) at the Yuma Proving Grounds, Ariz. when they penetrated dust clouds generated by a UH-1 test helicopter. The system helped pilots see through brownout conditions opaque to the human eye to differentiate between rocks, bushes, sloping terrain, utility poles, ground vehicles, and wires at distances greater than 200 meters.


This CAE computer simulation helps illustrate the challenges of landing helicopters in extremely dusty conditions.
Click here to enlarge image

“Our job is to have a very efficient sensor system for the CAE AVS with updates to the database that it uses to create the simulated environment,” Neptec’s Christie explains. “Pilots need to find out how different the landing zone is from what the system thinks it is. Combine the sensor and simulation and you have a very accurate synthetic environment.”

The CAE AVS combines OPAL with other sensors such as forward-looking infrared (FLIR). Sensor information blends with the CAE-developed common database (CDB), originally developed for U.S. Special Operations Command.

Further development of the AVS technology is part of CAE’s Project Falcon research and development to expand modeling and simulation technologies and develop new applications. Visit Neptec online at www.neptec.com, or CAE at www.cae.com.
