Avionics flight line test and measurement system with bus analysis and simulation introduced by Abaco

Sept. 25, 2019
Typical applications include bus analysis/simulation; system integration activities; 615-3 data loading; and maintenance, repair, and overhaul (MRO).

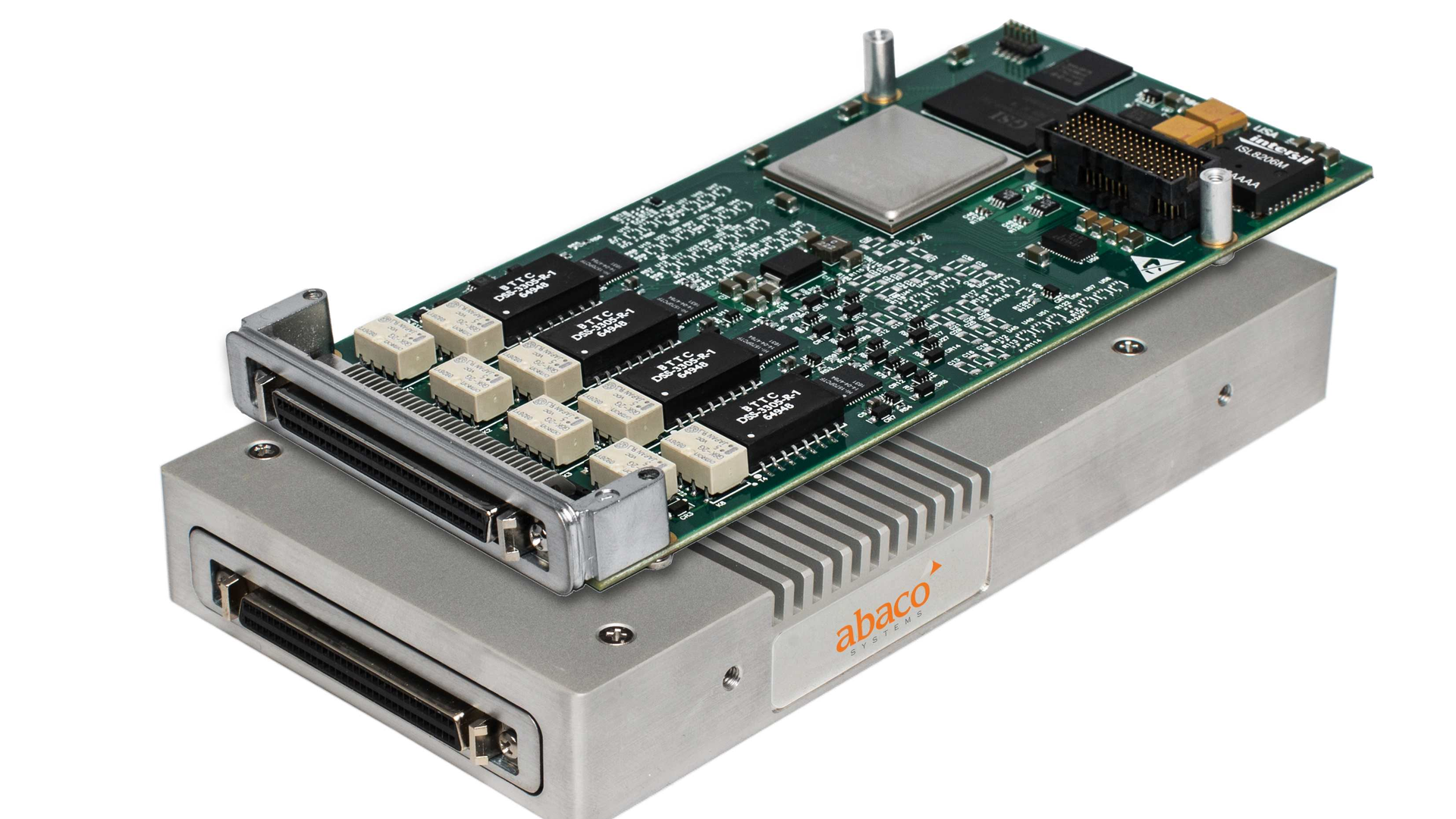

HUNTSVILLE, Ala. – Abaco Systems in Huntsville, Ala., is introducing the ARINC664-compatible RCNIC-A2PA-TB and multiprotocol RAR15XF-TB portable avionics devices for flight line test and measurement applications.

Typical applications include bus analysis/simulation; system integration activities; 615-3 data loading; and maintenance, repair, and overhaul (MRO).

These devices feature the Intel Thunderbolt 3 interface, and support as many as four channels of MIL-STD-1553 and 18 channels of ARINC 429 on one device. These new devices complement Abaco's previously announced QPM-1553-TB and RCEI-830A-TB.

Abaco's Thunderbolt 3 design delivers maximum flexibility and performance to extend the functionality of existing test systems without adding more slots. It also delivers portability and convenience for test and simulation users and for flight line use.

Related: Marvin delivers Air Force flightline test system for A-10C ground-attack jet three months early

ExpressCard and PCMCIA slots are disappearing from the portable computers widely used in avionics test and simulation, and have largely been replaced by USB. However, USB latency limits real time interaction with data, and channel density is similarly limited. Neither is desirable in an avionics environment in which low latency and high bandwidth are imperative.

The Thunderbolt 3 interface has become a de facto standard interface on new laptops and is a solution that limits neither the performance nor the flexibility of avionics databus adapters.

Thunderbolt 3 throughput is at least 4x faster than the highest speed USB connection, and has orders of magnitude lower latency than USB. It provides customers with a stable roadmap into the future, ensures long-term viability and provides performance advantages over USB-based devices.

The RCNIC-A2PA-TB is the first portable ARINC 664 device to come to market with Thunderbolt 3 connectivity. It is a dual port ARINC 664 interface for monitoring, generating or analyzing full-bandwidth AFDX/ARINC 664 Part 7 protocol traffic. Abaco's exclusive pipeline architecture maximizes packet throughput using parallel controllers and efficient DMA transfers, thereby avoiding the bottlenecks of CPU-based interface.

Related: Air Force asks TFAB Defense Systems to maintain and upgrade VDATS depot-level avionics test system

The RAR15XF-TB is the highest density portable MIL-STD-1553 and ARINC 429 device available. It delivers up to four channels of 1553 and 18 channels of ARINC 429 for the highest density in an extremely portable device. Its on-board firmware, large data buffers, and a high-level API are integrated to provide total flexibility in monitoring and generating ARINC bus traffic.

Simultaneous scheduled and burst mode (FIFO) messaging is supported on all ARINC 429 transmit channels. Each ARINC 429 receive channel provides simultaneous dedicated and buffered mode storage, along with label/SDI filtering.

For more information contact Abaco Systems online at www.abaco.com.
