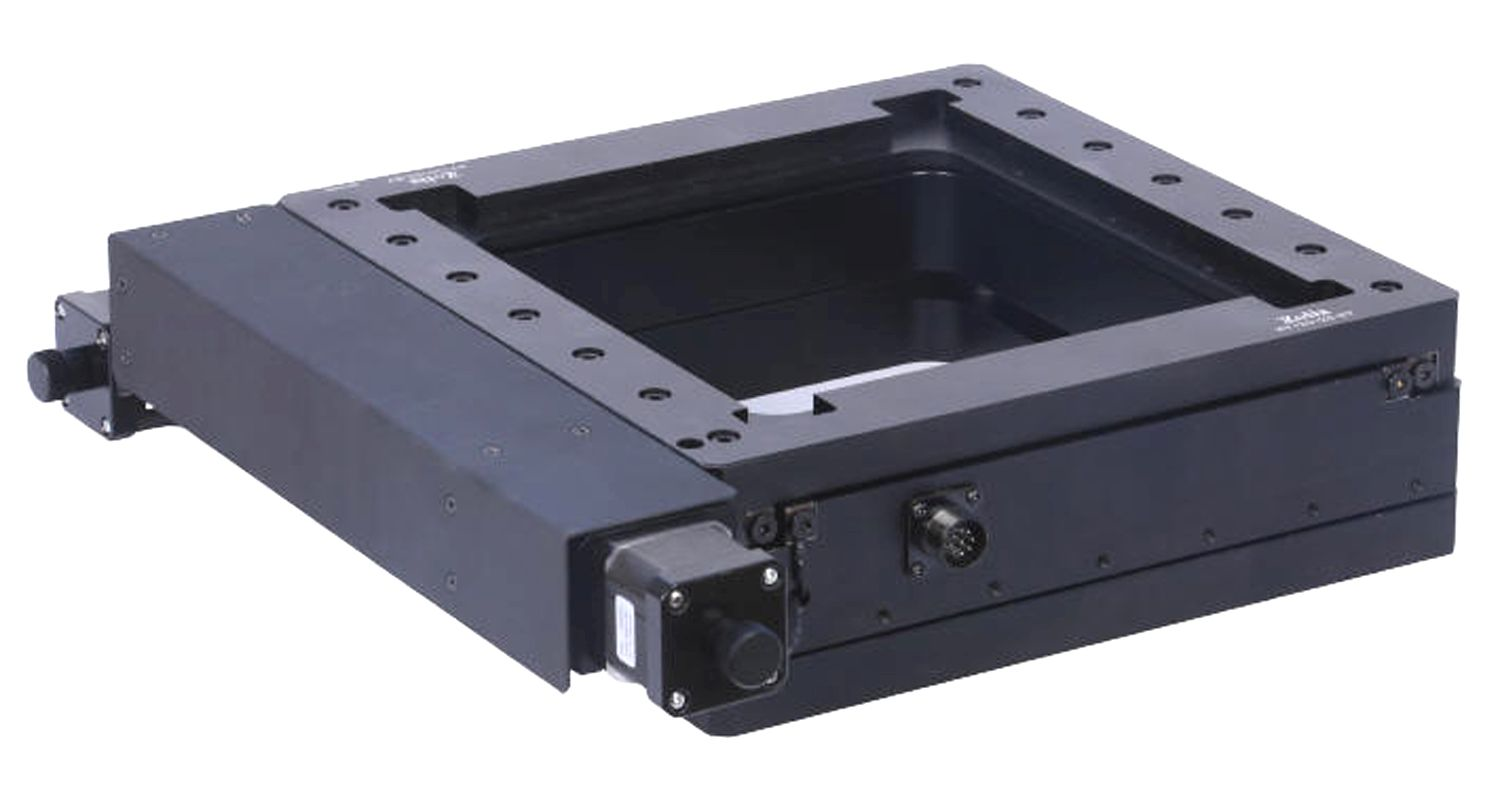

High-resolution XY alignment stages for industrial, medical and research applications introduced by OES
VAN NUYS, Calif. – Optimal Engineering Systems Inc. (OES) in Van Nuys, Calif., is introducing the AU200-120x120 high-resolution high-repeatability XY alignment stages for industrial, medical and research applications.
Easy integration of tooling and fixtures comes through a precision series of threaded mounting holes. Applications include alignment, inspection, test and measurement, scanning, laser drilling, machining, semiconductor handling, sampling, assembly, and optical applications.
The AU200-120x120 alignment stages feature 120 millimeters of travel in the X and Y axes. These low-profile 87-millimeter high XY stages, have a 188-millimeter x 188-millimeter (7.401 in. x 7.401 in.) open aperture.
The AU200-120x120-01 XY Stage is stepper motor-driven, featuring a resolution of two microns when using a 10 micro-steps-per-step micro-stepper motor driver and one micron repeatability.
Related: Test and measurement equipment keeps high-tech systems in working order
The AU200-120x120-02 Stage comes with three-phase brushless servo motors and quadrature incremental encoders, and AU200-120x120-03 has DC servo motors with quadrature incremental encoders.
The two closed-loop servo motor options offer great resolution, repeatability, positional accuracy, high travel speeds, and great throughput.
The AU200-120x120-04 has the knobs on the stepper motors replaced with quadrature incremental encoders for position verification. The AU200-120x120 alignment stages can be ordered as a complete plug-and-play system with compatible motion controllers with PC interface, joystick and keypad from OES.
For more information contact OES online at www.oesincorp.com.
