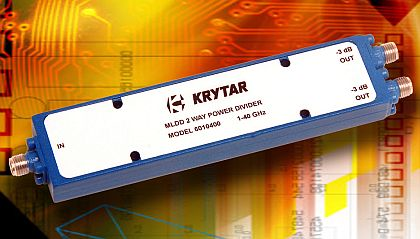

Compact power divider for broadband electronic warfare (EW) introduced by KRYTAR

April 30, 2013

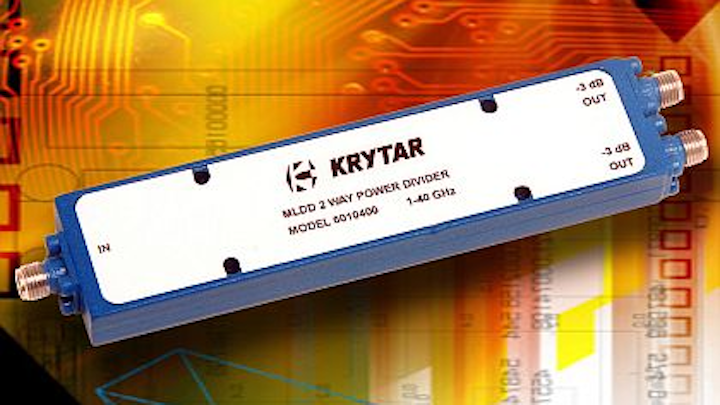

SUNNYVALE, Calif., 30 April 2013. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 6010400 compact two-way power divider that operates over the frequency range of 4 to 40 GHz in broadband electronic warfare (EW) systems and complex switch-matrix applications.

SUNNYVALE, Calif., 30 April 2013. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 6010400 compact two-way RF and microwavepower divider that operates over the frequency range of 4 to 40 GHz in broadband electronic warfare (EW) systems and complex switch-matrix applications.

The model 6010400 has 14 dB Isolation and ±0.60 dB amplitude tracking. The two-way divider exhibits insertion loss of less than 2.5 dB across the full frequency range. Maximum Input VSWR is 1.85 from 1 to 20 GHz and 1.85 from 20 to 40 GHz. Maximum Output VSWR is 1.50 from 1 to 20 GHz and 1.70 from 20 to 40 GHz. Phase Tracking is ±7 degrees from 1 to 20 GHz and ±14 degrees from 20 to 40 GHz.

The power divider measures 4.15 by 1 by 0.43 inches, weighs three ounces, and comes with standard 2.4-millimeter coaxial female connectors. Model 6010400K includes 2.92-millimeter "K" female connectors.

This two-way power divider is for wireless ultra-broadband designs and many test and measurement applications. The two-way power divider can be manufactured to meet military specifications. KRYTAR also offers engineering services for custom designs.

For more information contact KRYTAR online at www.krytar.com.
