Metric-size motors for voice coil actuators for beam steering and laser machining introduced by Moticont

June 25, 2021
The LVCM-022-013-01M linear voice coil actuator is efficient, has high acceleration and deceleration,, low inertia, and high-speed zero cogging.

VAN NUYS, Calif. – Moticont in Van Nuys, Calif., is introducing metric-dimensioned motors to the company's LVCM series of linear voice coil actuators for laser beam steering and filtering, vibration damping, wafer handling, laser machining and drilling, and sorting applications.

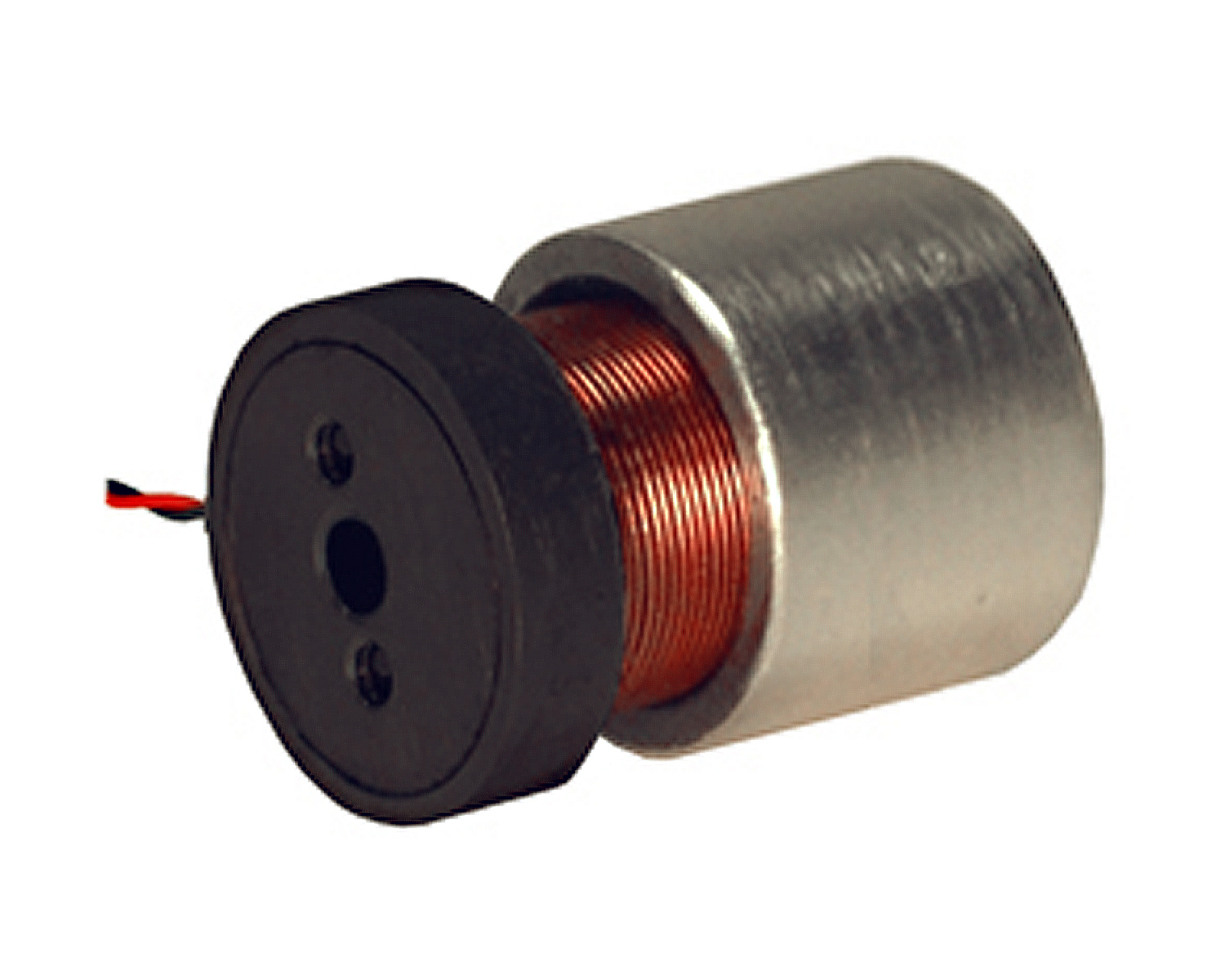

An example is the miniature LVCM-022-013-01M linear voice coil actuator. At 22.2 millimeters in diameter and at mid-stroke 20.7 millimeters long, this new metric miniature voice coil actuator has a continuous force of 14.5 ounces and a peak force of 45.7 ounces, with a 6.4-millimeter stroke.

A miniature brushless DC servo motor, the LVCM-022-013-01M linear voice coil actuators have high acceleration and deceleration and low inertia. This miniature brushless servo motor is clean, has high speed, zero cogging, and is efficient.

Related: Brushless linear voice coil motors for motion control in antenna positioning introduced by Moticont

Additionally the metric LVCM-016-010-01 linear actuator features high accuracy and repeatability when operated as a DC servo motor in a closed servo loop.

Each end of this linear actuator has two M3X0.5 threaded mounting holes in the housing and two M3X0.5 threaded mounting holes in the coil end on 9.5-millimeter centers for integration into new and existing applications.

For more information contact Moticont online at
