Brushless linear voice coil servo motor for laser machining and beam steering introduced by Moticont

June 13, 2023
This non-commutated brushless servo motor features: high reliability, high speed, high acceleration/deceleration, and repeatability.

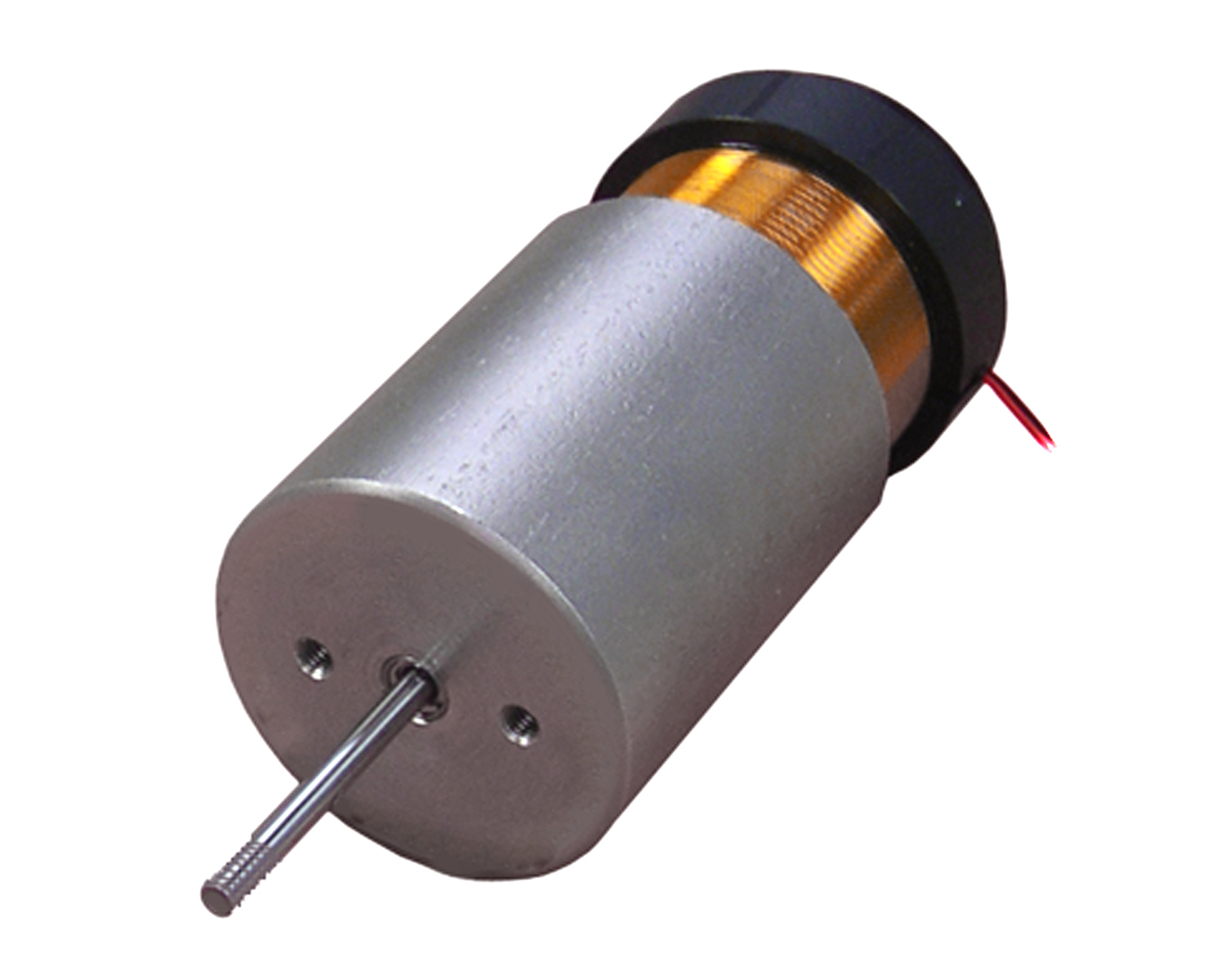

VAN NUYS, Calif. – Moticont in Van Nuys, Calif., is introducing the miniature GVCM-019-022-02 linear voice coil servo motor for haptic feedback and pipetting in laser machining and drilling, laser beam steering and filtering, optical focusing, dynamic vibration absorption, testing, sorting, work holding and clamping, scanners, and assembly.

The linear voice coil servo motor measures three-fourths of an inch in diameter and features a half-inch stroke. This very small linear actuator, also referred to as an electric cylinder, features 8.4 ounces of continuous force and 26.6 ounces of peak force at a 10 percent duty cycle.

This non-commutated brushless servo motor features: high reliability, high speed, high acceleration/deceleration, and repeatability when used in a servo loop, and zero cogging.

Related: Linear stages with optional servo motor for motion control in military applications introduced by OES

The compact housing and coil end combined are 1.063 inches long and in the extended position the threaded shaft extends 0.786 inches beyond the face of the housing. The end of the shaft has a 2-56 UNC-2A thread 0.156 inches long for backlash-free connections.

The housing and coil ends of the actuator have two 4-40 UNC-2B threaded mounting holes on 0.313-inch bolt circles for integration into an application.

Non-commutated, these brushless miniature linear servo motors are clean, quiet, and should be considered as low-cost replacements for pneumatic linear actuators.

For more information contact Moticont online at www.moticont.com.
