Hollow-core linear voice coil servo motor for laser drilling, testing, introduced by Moticont

High-speed low-inertia servo motor provides sub-micron positioning when used with an external high resolution position sensor in a closed servo loop.
Oct. 29, 2025
2 min read

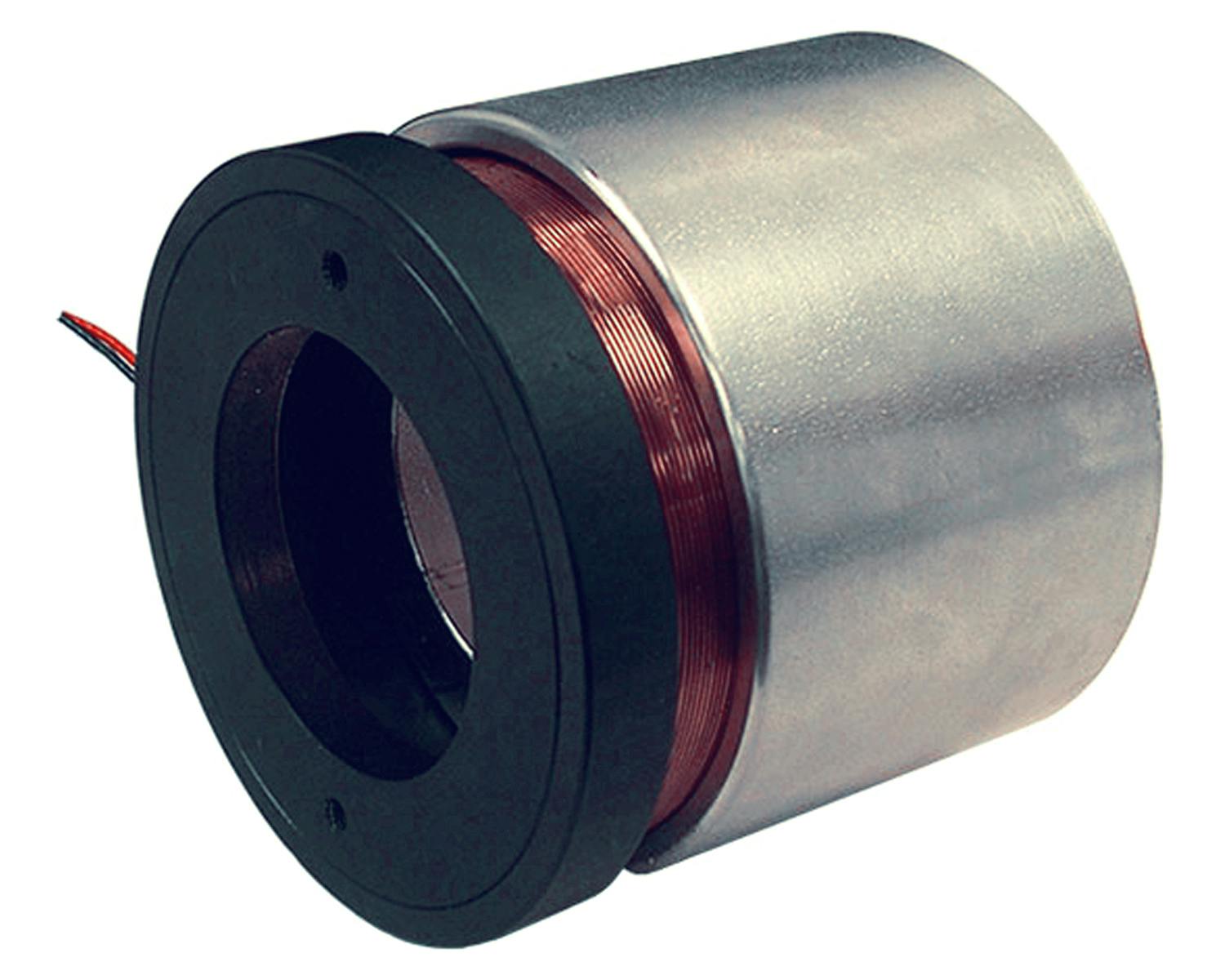

The Moticont HVCM-095-064-051-01 hollow-core linear voice coil servo motor is for optics, illumination, laser beams, tubing, and cable passage.

Summary points:

  • Moticont introduces the HVCM-095-064-051-01, designed for precision applications in optics, laser systems, and automation.
  • Delivers smooth, accurate motion with a 38.1-millimeter stroke, 50.8-millimeter open aperture, and zero backlash for demanding positioning tasks.
  • Offers 15.4 pounds continuous and 48.6 pounds peak force, featuring a 2-inch open aperture for easy integration into advanced systems.

VAN NUYS, Calif. – Moticont in Van Nuys, Calif., is introducing the HVCM-095-064-051-01 hollow-core linear voice coil servo motor for optics, illumination, laser beams, tubing, and cable passage.

This high speed, low inertia motor is for clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications.

This high-speed low-inertia servo motor provides sub-micron positioning when used with an external high resolution position sensor in a closed servo loop. The motor has a 38.1-millimeter stroke and 50.8-millimeter open aperture.

Tell me more about hollow-core linear voice coil servo motors ...

  • Hollow-core linear voice coil servo motors are high-precision actuators that use a magnetic field to create linear motion. They consist of a coil placed in a cylindrical hollow core for minimal moving mass and fast response times. The coil interacts with a permanent magnet field to generate force and offer smooth and accurate movement. These motors are efficient and are often used in applications where space is limited or precision is required, such as in optical systems, laser alignment, and industrial automation. Their design minimizes friction and wear and results in long operational life and low maintenance. They also offer high-force-to-weight ratios and can be integrated easily into compact systems.

The HVCM-095-064-051-01 servo motor has a continuous force rating of 15.4 pounds and a peak force of 48.6 pounds at a 10 percent duty cycle. The non-commutated long-life brushless linear servo motor offers high acceleration and deceleration, zero cogging, and zero backlash when connected directly to a load.

The 2-inch-diameter open aperture of the HVCM-095-064-051-01 hollow-core voice coil linear servo motor, also called a moving coil motor, is 3.75 inches in diameter and 3.75 inches long at mid-stroke.

Two threaded 10-32 UNF-2B X 0.38 deep mounting holes on 2.75-inch centers in the housing and coil ends offer flexible and easy integration into new and existing applications. For more information contact Moticont online at www.moticont.com/hollow-voice-coil-motor.htm.
