BroadWave Technologies Inc

170 Airport Pkwy Suite A
Greenwood, IN 46143
United States
317-888-8316
317-888-8593
Visit Company Website

More Info on BroadWave Technologies Inc

Manufactures coaxial components for automotive, aerospace, communications systems, defense, test and measurement, manufacturing, medical instruments, and telecommunication infrastructure applications. Product line includes attenuators, terminations, open/short and feed-through terminations, power dividers, directional couplers, RF detectors, impedance matching pads, adapters, and DC blocks.

Products

Supplier Submitted
|
Supplier Submitted
|
Frequency Range: DC - 4 GHzImpedance: 50 Ohm VSWR: 1.35:1 maximum Power Input: 50 watts RF Connectors: N MaleOperating Temperature Range: - 40°C to +70ºC
Supplier Submitted
|
Frequency Range: DC - 1500 MHzImpedance: 50 OhmVSWR: DC - 1000 MHz 1.20:1 maximum, 1000 - 1500 MHz 1.40:1 maximumInput Power: 1 Watt averageConnectors: SMA
Supplier Submitted
|
Frequency Range: 500 - 4500 MHzImpedance: 50 Ohm Isolation: 20 dB typical, 15 dB minimumVSWR: 1.50:1 maximumPower Input: 5 Watts average @ common port RF Connectors: N
Supplier Submitted
|

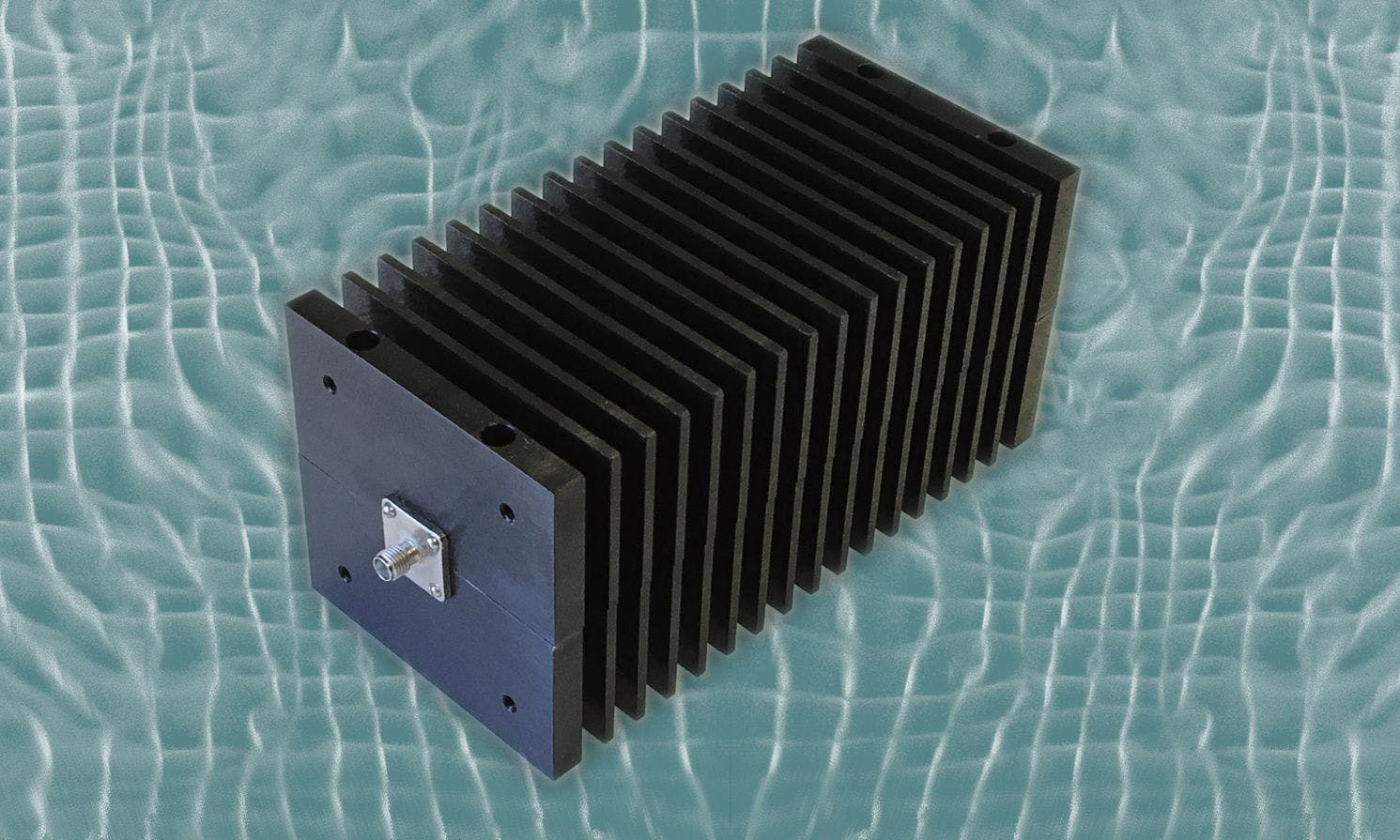

Frequency Range: DC – 2.7 GHzImpedance: 50 OhmsAttenuation Value: 3, 6, 10, 20, 30, 40 dBPower Input: 100 Watts average, 1000 Watts peak RF Connectors: SMA Female

Articles

Power RF and microwave device is to reduce the amount of power delivered in a transmission line without introducing much noise or distortion.

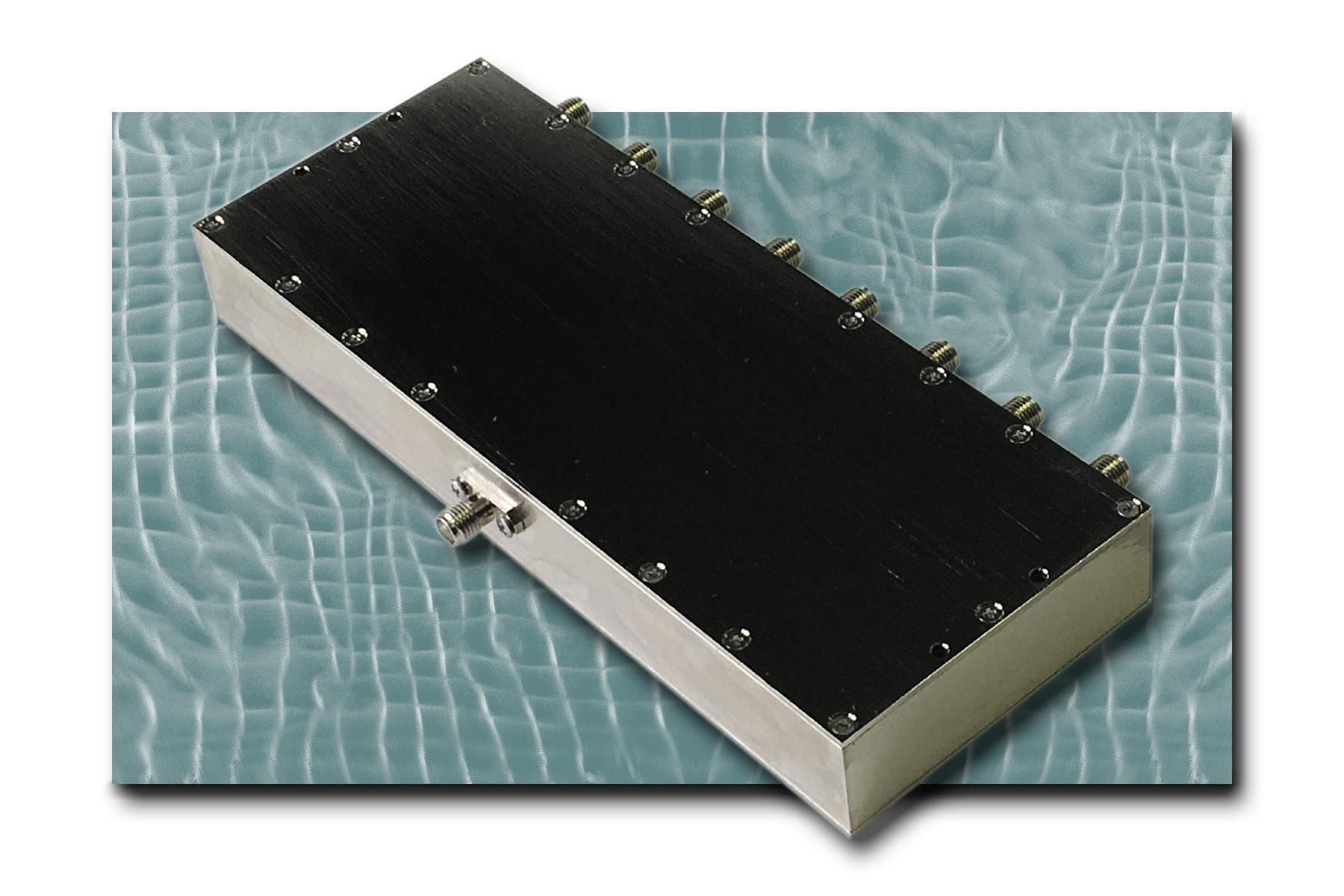

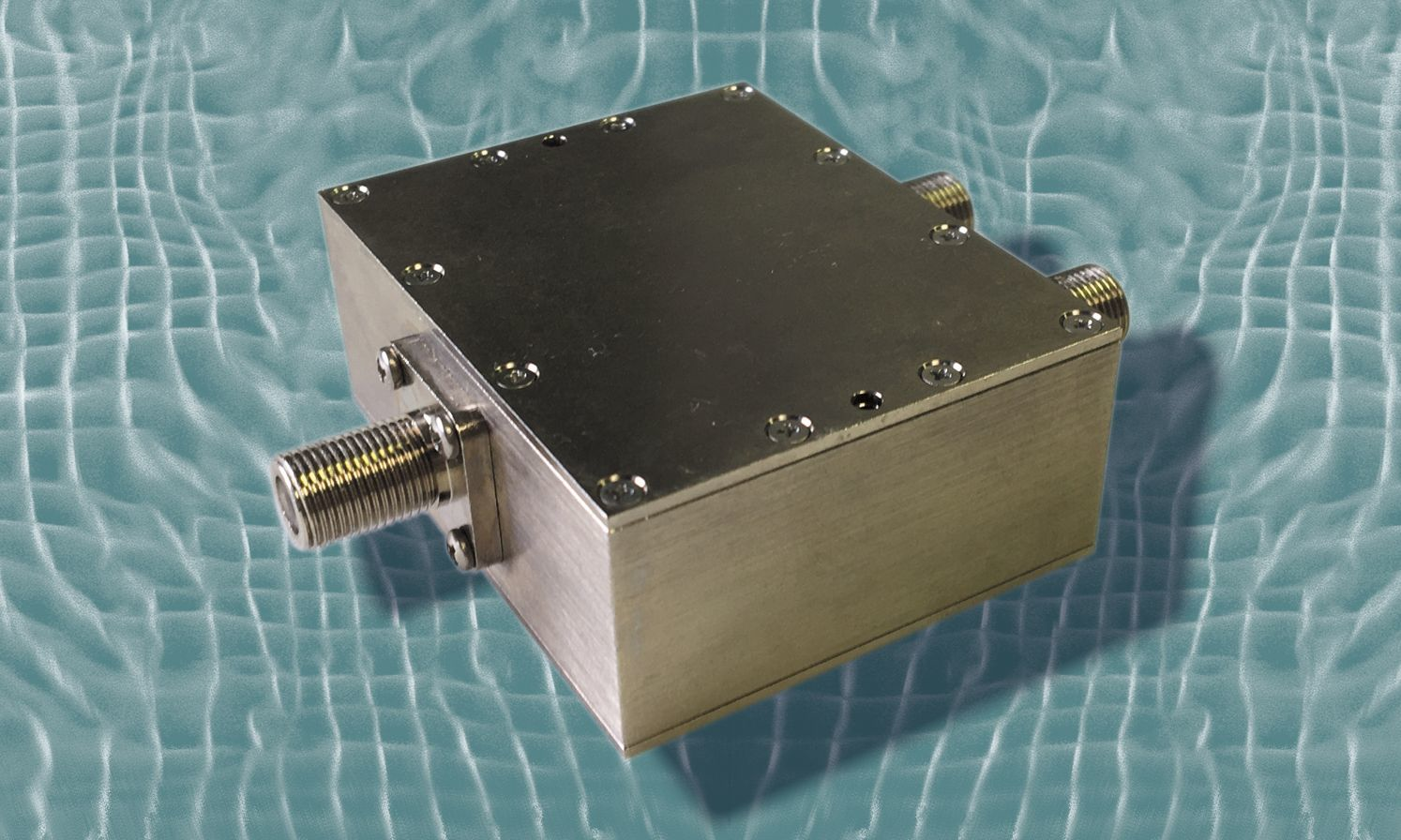

The model 151-308-008 is an 8 way power divider with SMA female connectors that operates from 500 to 3000 MHz and exhibits isolation of 25 decibels.

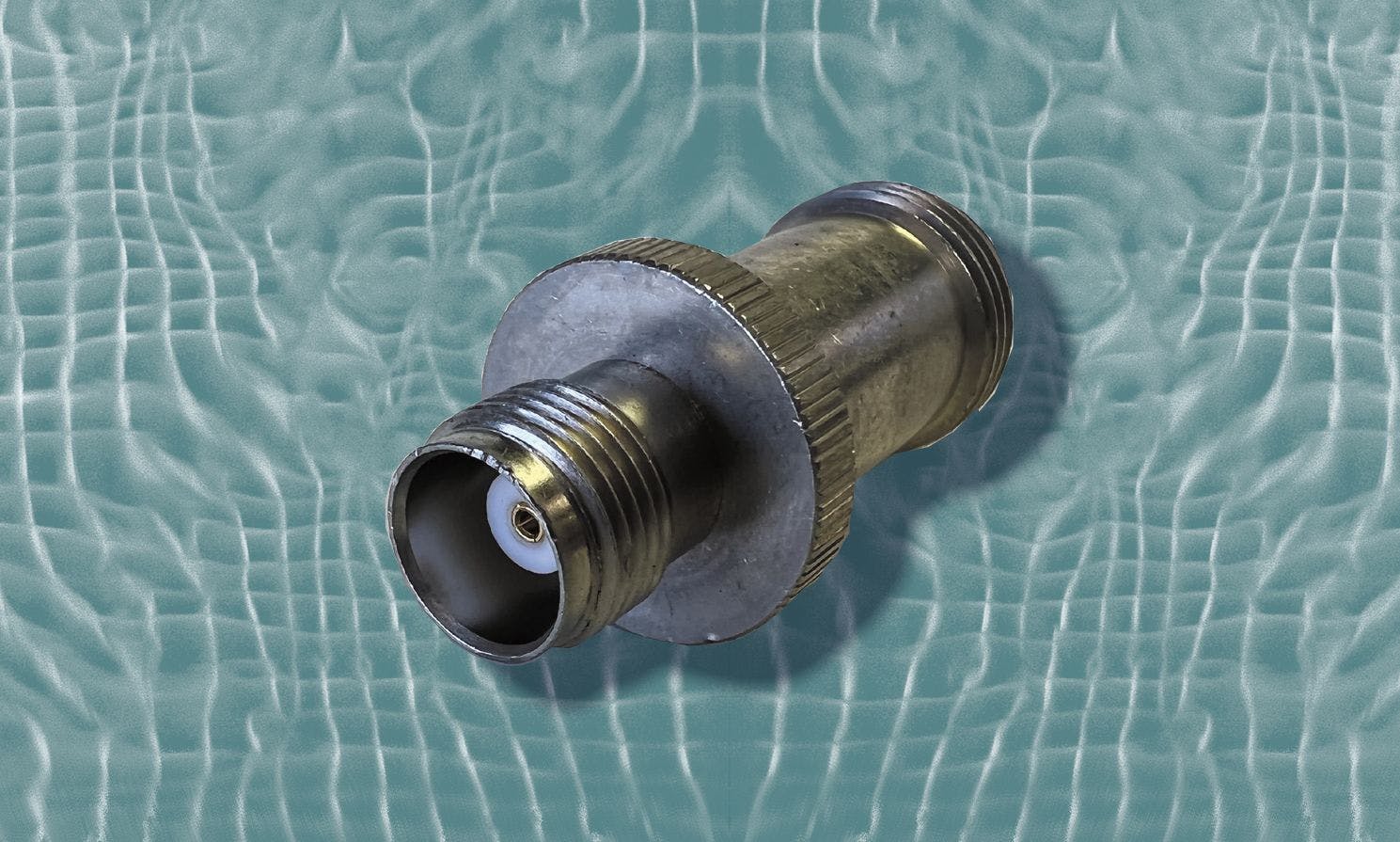

RF adapter has a DC-to-6 GHz frequency range, and can switch between TNC female to N female exhibiting plus-or-minus 0.75 decibels insertion loss.

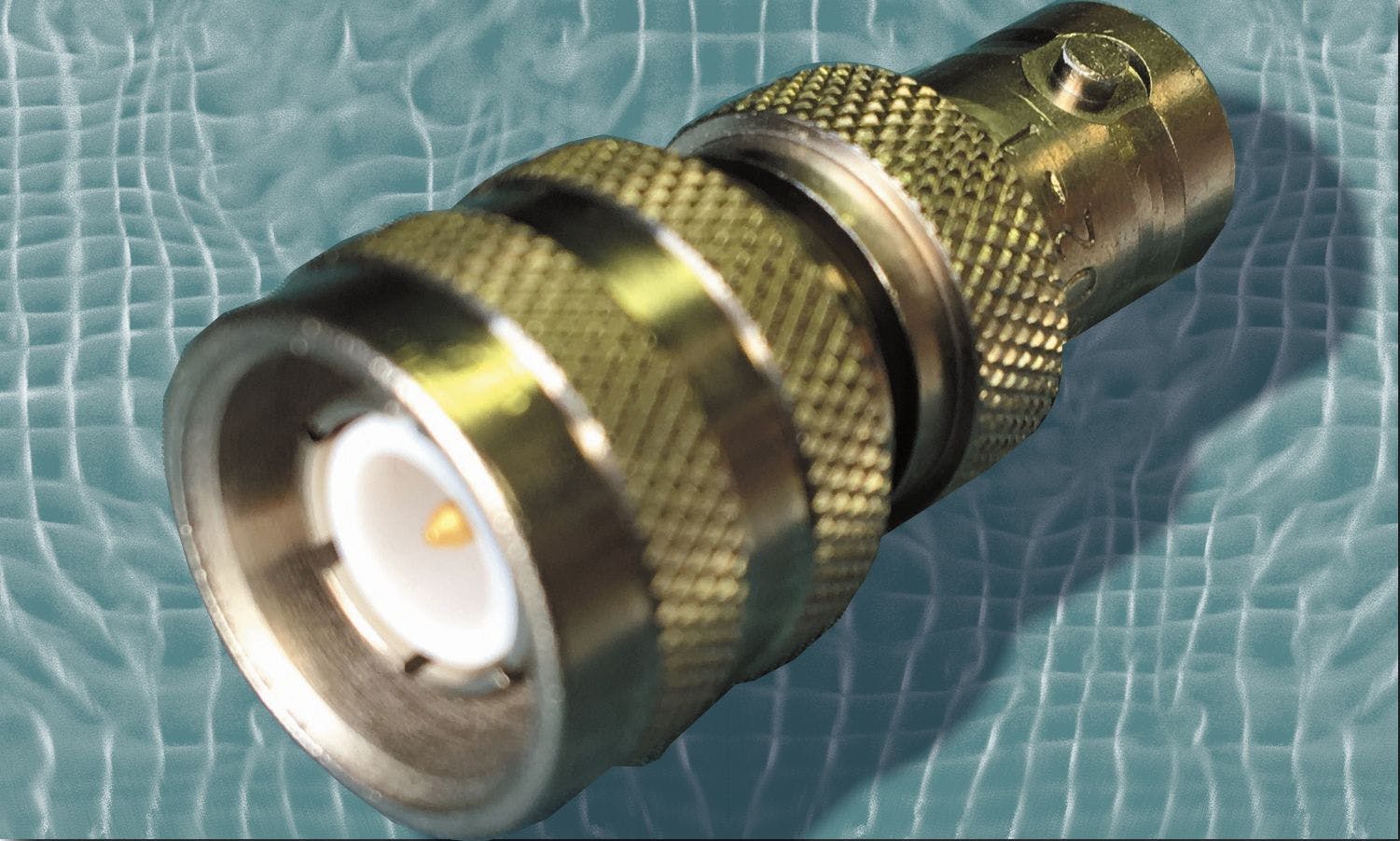

The model 431-442-333 has a 50 Ohm impedance and DC-to-5 GHz operating frequency range. The connector configuration is BNC female to TNC male push on.
BroadWave Technologies feed-thru terminations are designed to match RF components with high impedance test equipment such as an oscilloscope.

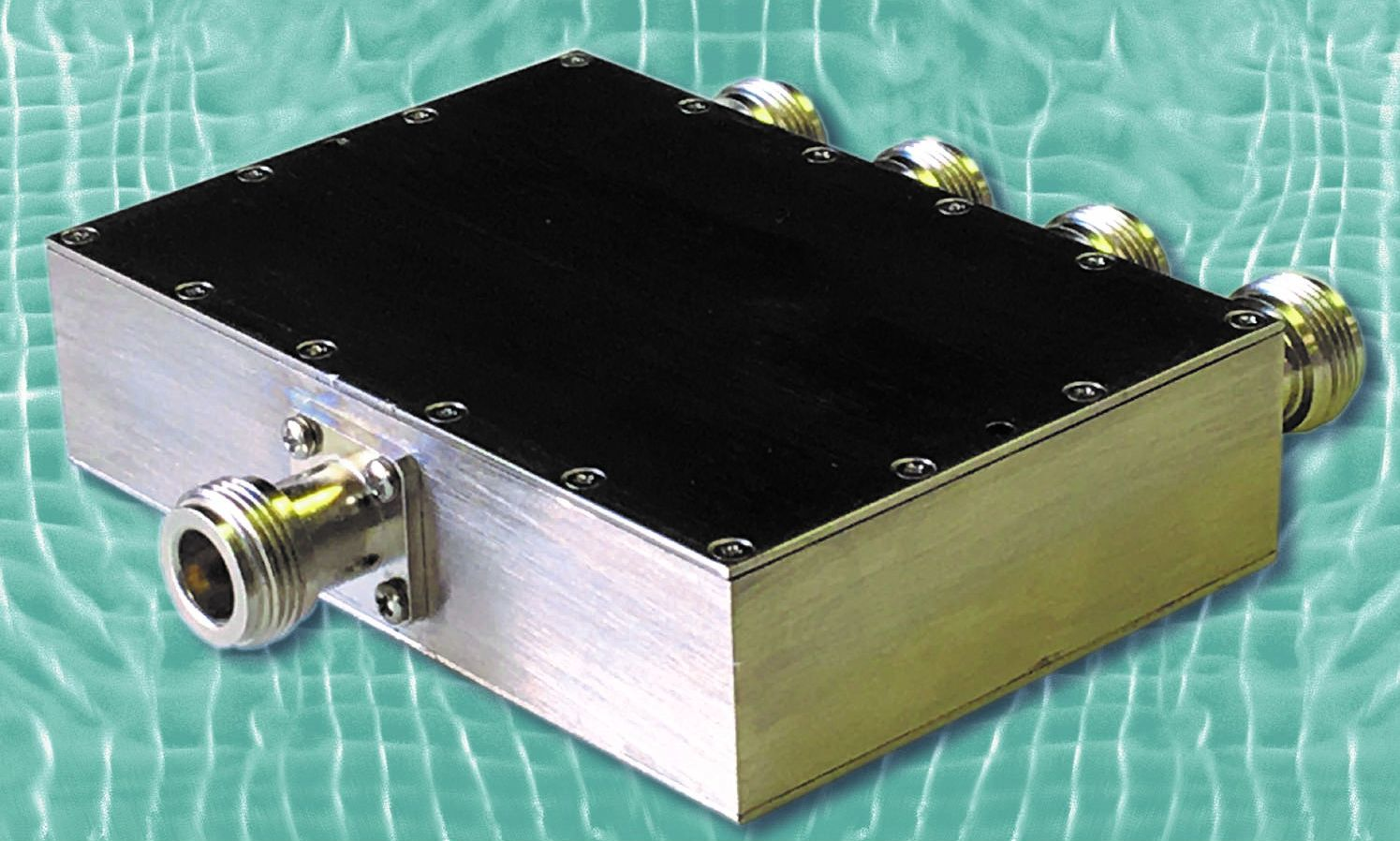

Available in 2-, 4-, and 8-way configurations, these 10-Watt devices operate at frequencies of 900 to 2150 MHz at temperatures from -55 to 85 C.

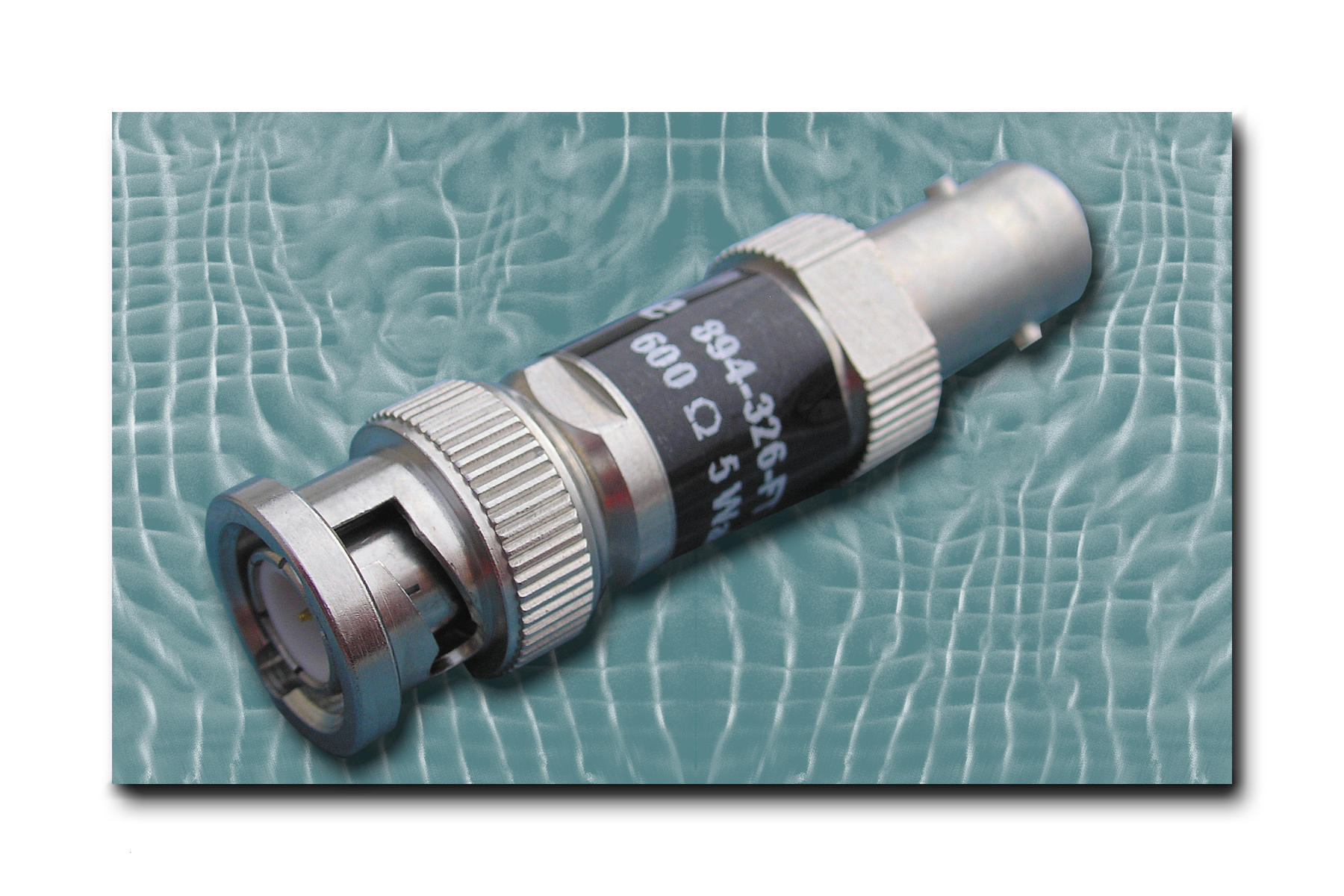

The 600 Ohm device operates from DC to 1000 MHz, exhibits 1.20:1 maximum VSWR, is rated 5-Watts average, and has a BNC male / BNC female connector.

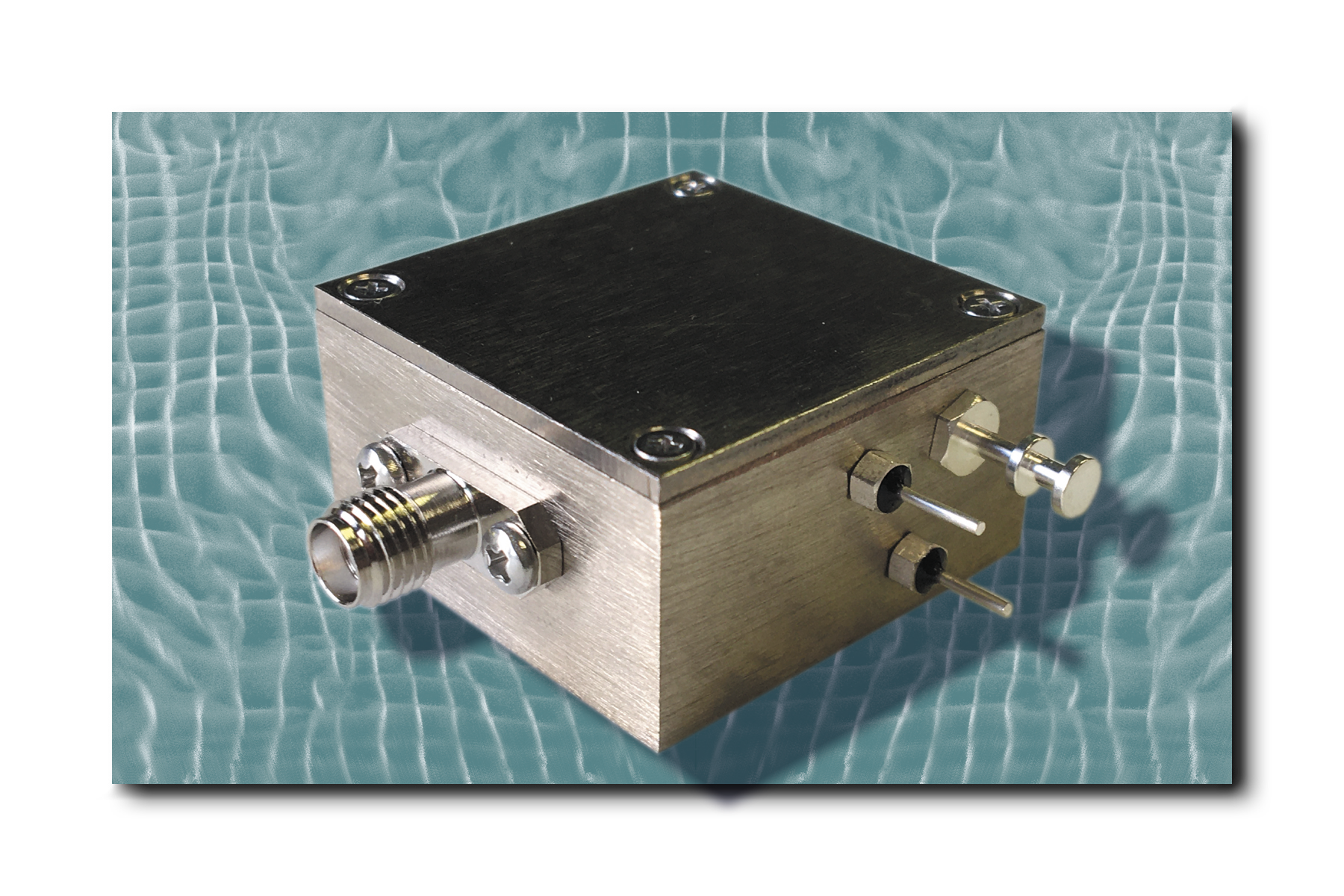

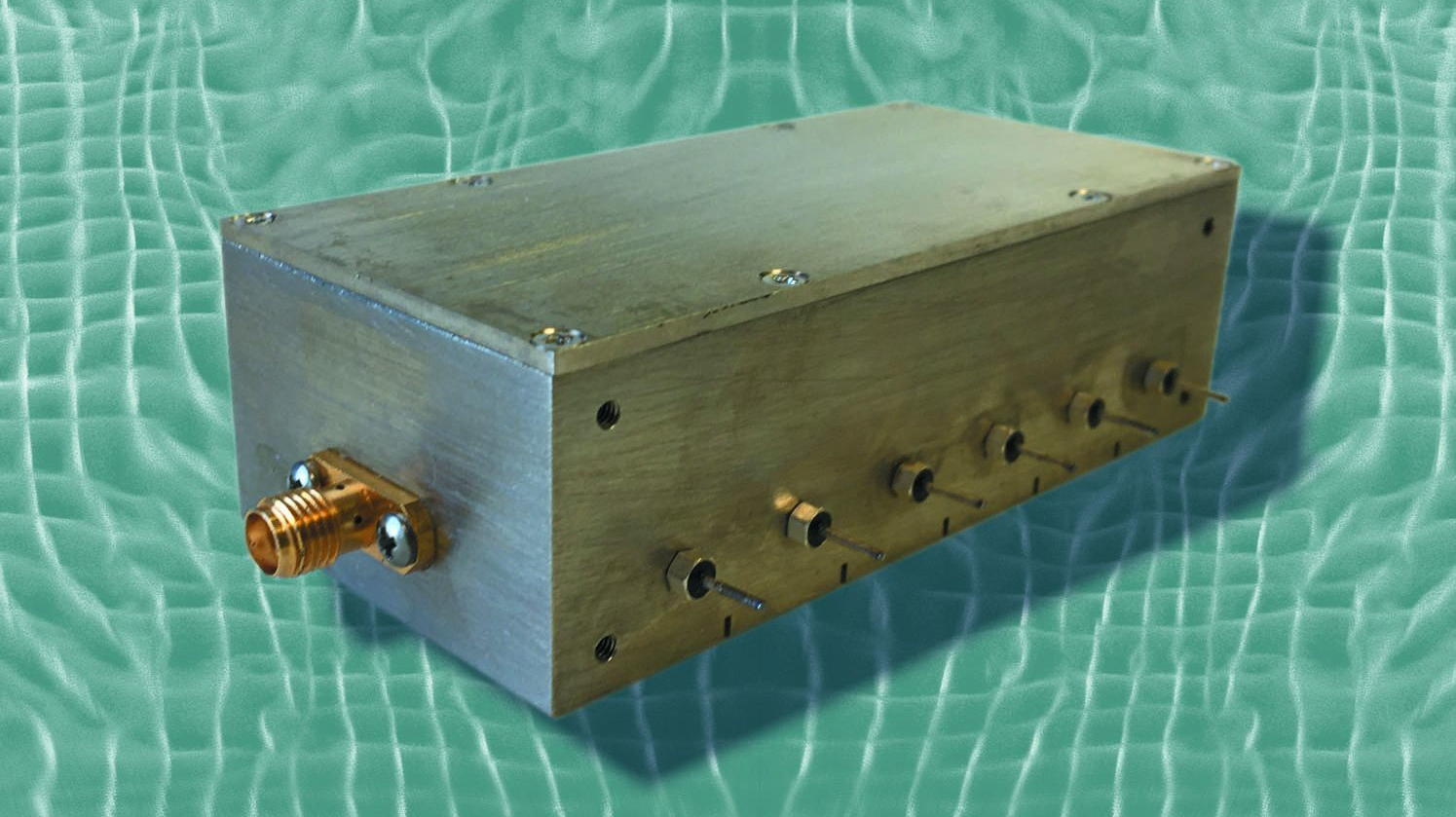

The frequency range is DC to 2.5 GHz. Attenuation range is 0 to 20 decibels in a 20-decibel step with ± 0.6-decibel attenuation accuracy.
RF connectors are SMA female, the control solder terminal features a feed-thru capacitor to prevent leakage, and other RF connector types are available.
Applications include test and measurement equipment, telecommunication systems, base stations, radar, and others military programs.

BroadWave Technologies Inc Categories

Buyer’s Guide Listing Information

Click here for listing information and directions on how to add or update your company.

Request More Information From BroadWave Technologies Inc

By clicking above, I agree to Endeavor Business Media's Terms of Service and consent to receive promotional communications from Endeavor, its affiliates, and partners per its Privacy Notice. I also understand my personal information will be shared with the sponsor of this content, who may contact me about their offerings per their privacy policy. I can unsubscribe anytime.

Additional content from BroadWave Technologies Inc

Attenuation accuracy is plus-or-minus 0.5-decibel or 2 percent of programmed and is controlled via solder terminal connectors.
The Broadwave model 152-085-004 has a five-Watt average power rating, and is a 50-Ohm four-way power divider with an 800-to-2700 MHz frequency range.
These attenuators reduce the amount of power delivered in a transmission line without introducing much noise or distortion.
Applications include high-precision military applications like radar; test and measurement equipment; telecommunication systems; and base stations.
The model 854-142-POS RF detector from BroadWave Technologies is designed to convert a RF input signal to a DC output signal.

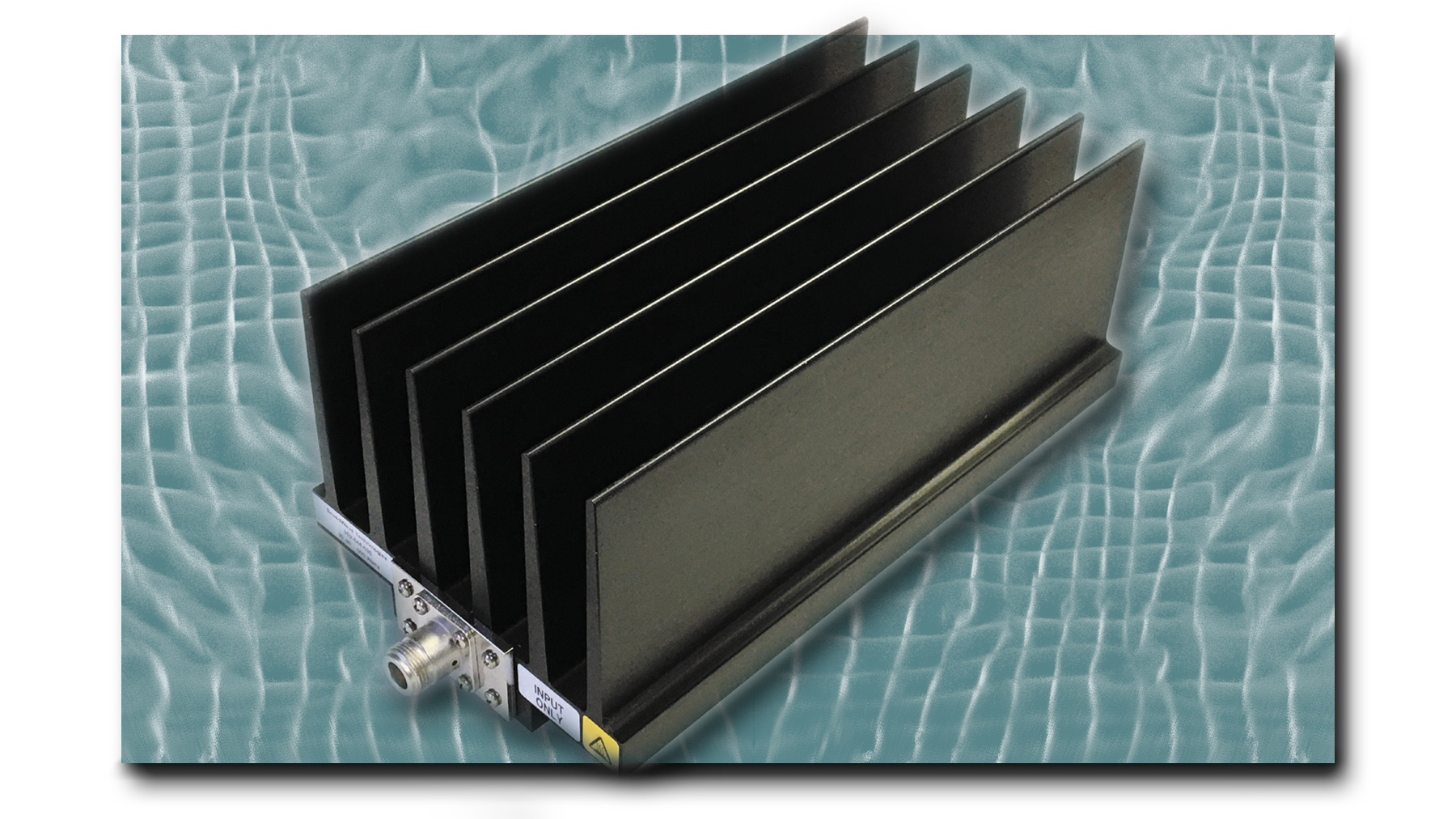

Attenuators are for testing and analyzing harmonic signals or isolating a device under test. They are rated 500 Watts, with a maximum VSWR or 1.25:1.
